Dettagli:
|
| Intervallo di temperatura: | -40 ° C a +70 ° C. | Inclinare: | -45 ° + 90 ° |
|---|---|---|---|
| Tipo di sensore: | PTZ termico | Panoramica: | N × 360 ° rotazione continua |
| Intervallo spettrale: | 7.5μm - 14μm | Distanza minima del fuoco: | 5-10 km |
| Peso: | 15 kg | Intervallo di rilevamento: | 5-10 km |
| Evidenziare: | Unmanned vehicle PTZ thermal camera,Anti-drone surveillance thermal sensor,Factory direct thermal sensor camera |
||
* Can integrate HD visible light and uncooled infrared thermal imagers to meet monitoring needs in day and night, all-weather environments;
* Rotation speed can reach over 100°/s, with rapid start and stop, and can track fast-moving targets;
* Azimuth rotation range 0°~360°, pitch rotation range -90°~+90°
* Supports area intrusion alarm, boundary crossing alarm, motion detection, target recognition, automatic tracking, and radar linkage.
Thermal Camera Options
| Image Sensor | Uncooled Vox | |
| Resolution | 640X512 pixels | |
| Pixel Pitch | 12μm | |
| Lens | 20mm | 75 mm |
| Focus | Motorized Autofocus | |
| Spectral Range | LWIR (8-14μm) | |
| Thermal Sensitivity | 40mK | |
| Image Display Modes | White Hot, other color palettes available | |
Visible Camera/LRF Options
| Lens | 4.7mm~141mm |
| Resolution | 1920×1080 |
| Sensor | Ultra-low illumination starlight CMOS |
| Video Format | H.264/H.265 |
| Laser range finder |
Wavelength: 905nm ± 5nm Range: 1km/3km/5km |
Other Specification
Pan/Tilt Mechanical
| Pan Angle | Endless 360° |
| Tilt Angle | -90°~+90° |
| Rotate Speed | ≥100°/s |
| Presets | ≥ 255 |
| Accuracy | ≤0.01° |
| Working Temperature | -40℃~60℃ |
| Weight | ≤6kg |
| Dimensions | ≤φ200mm×300mm |

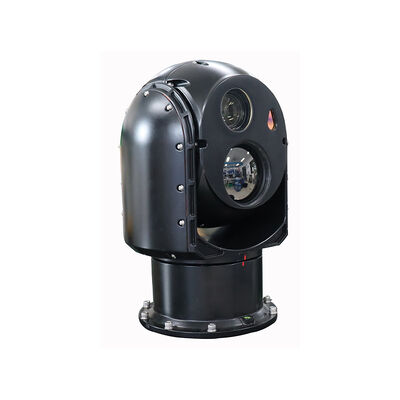

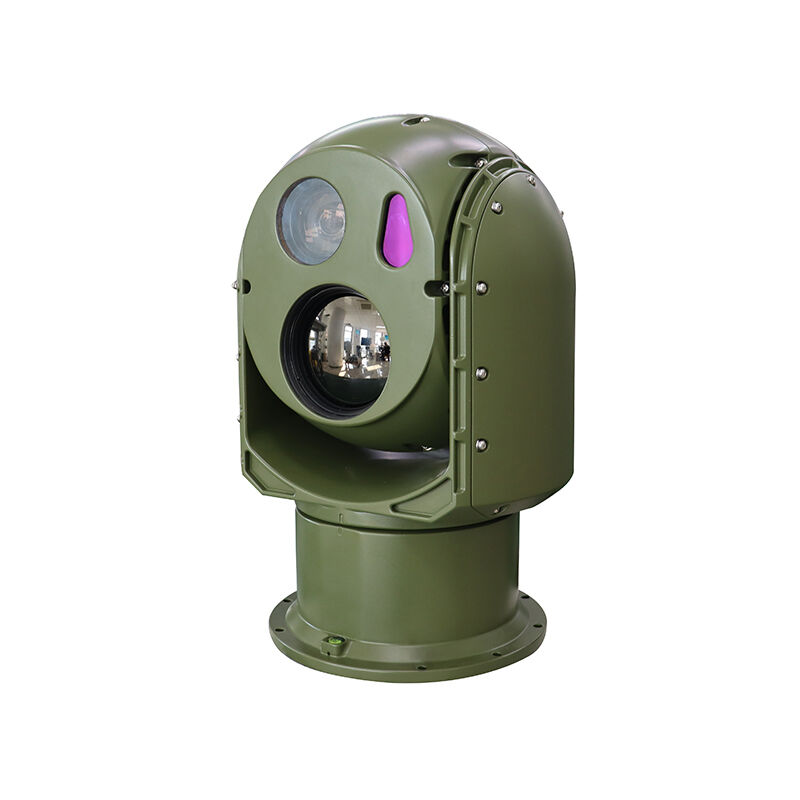

The Hope-Wish Long Range Thermal Camera model HP- is a cutting-edge Thermal Imaging Camera designed to deliver exceptional performance in a variety of application occasions and scenarios. Originating from China, this advanced device boasts a detection range of 5-10KM, making it ideal for long-distance monitoring and surveillance tasks. With a high-resolution sensor of 1920x1080, the Long Range Thermal CameraThermal Imaging Camera captures clear and precise thermal images, even in complete darkness or adverse weather conditions.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
